The CV series Check Valves are designed to give unidirectional flow control of liquids and gases with a minimal pressure drop. The valves are precision machined from 316 stainless steel bar stock and are available with either PTFE or Viton seals. The CV series valves have a safe working pressure up to 3000psi and can be supplied with a choice of springs to give a variety of cracking pressures. Inlet and outlet port connections range from 1/4" to 1" in NPT, BSPT and BSPP thread forms or with O.D. compression ends in either single or twin ferrule types,

The Mini series check valve is a compact one piece body check valve for unidirectional control of flow up to 6000psi. Available with 1/4" or 1/2" NPT male connections. The Mini series valve is also available with an adjustable spring to give a variety of cracking pressures.

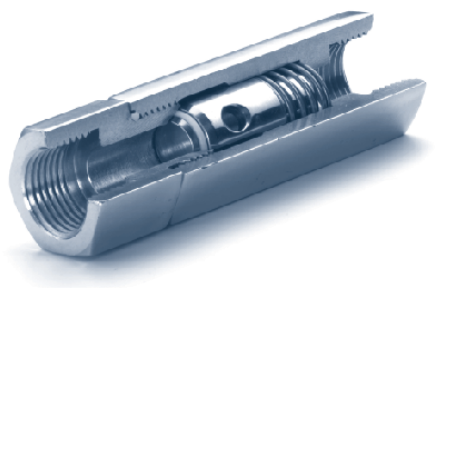

Check Valve

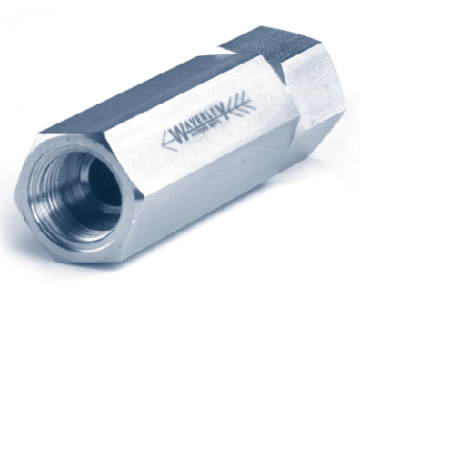

Check Valve

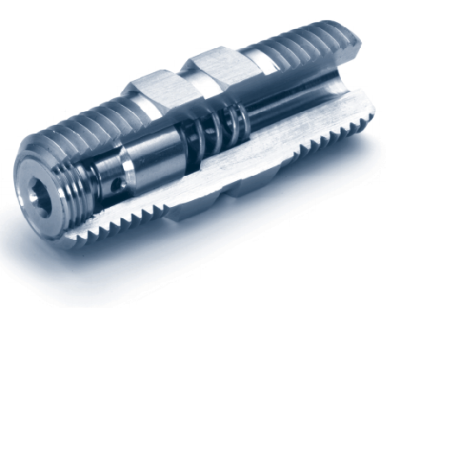

Adjustable Mini Check Valve

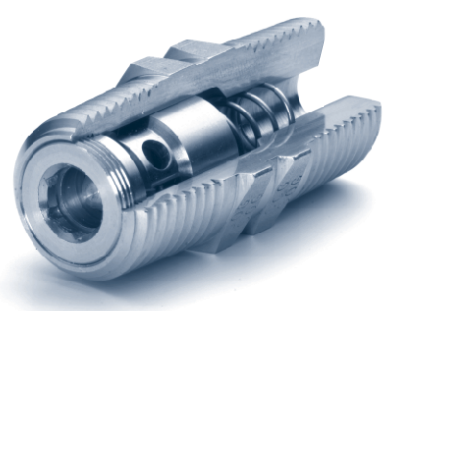

Mini Check Valve

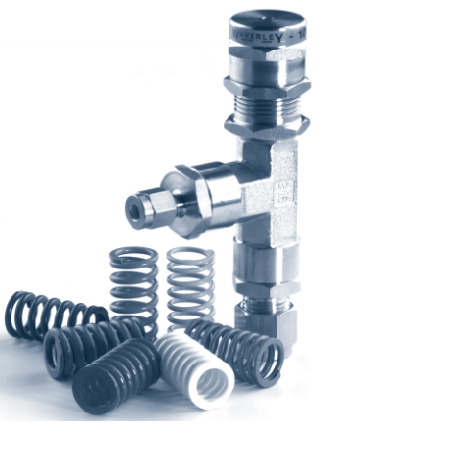

Relief Valve

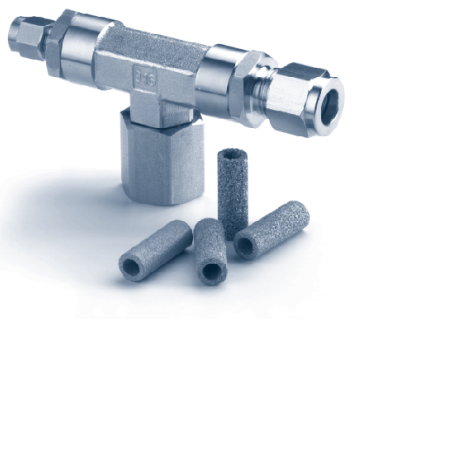

Inline Tee Filter
